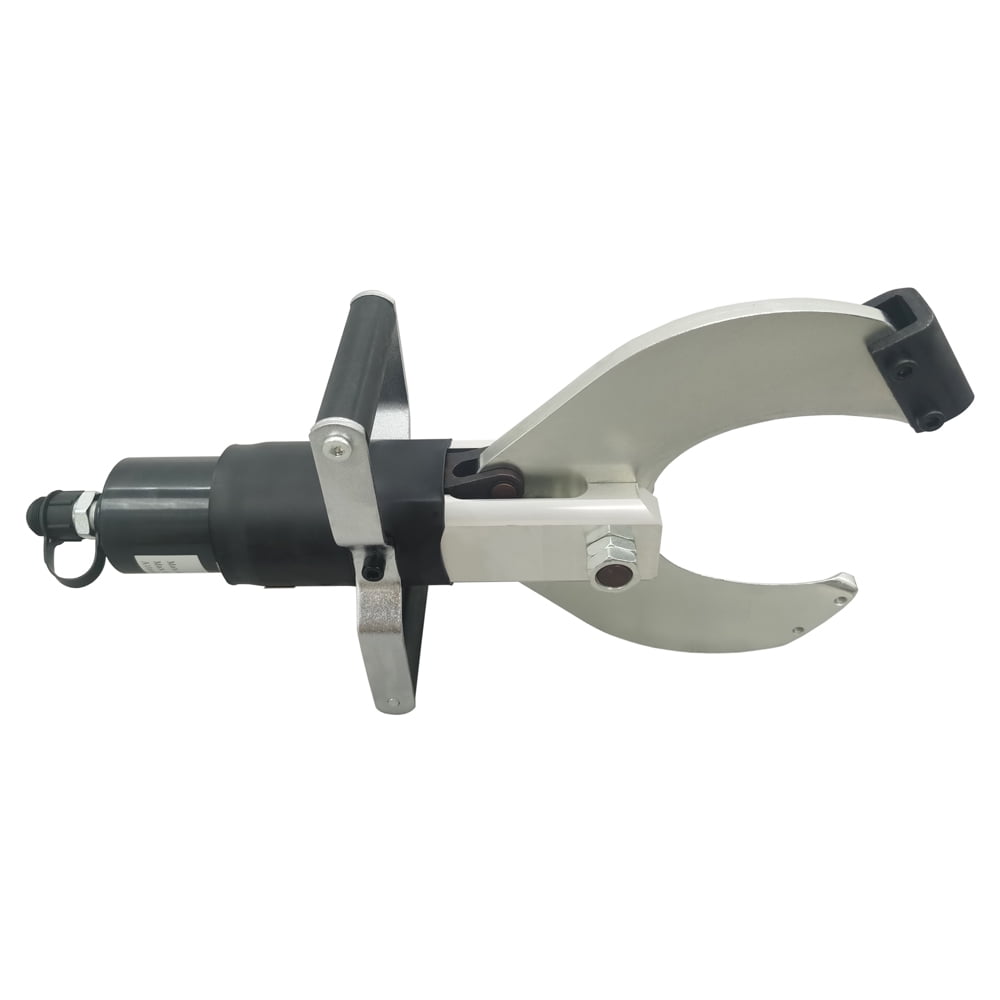

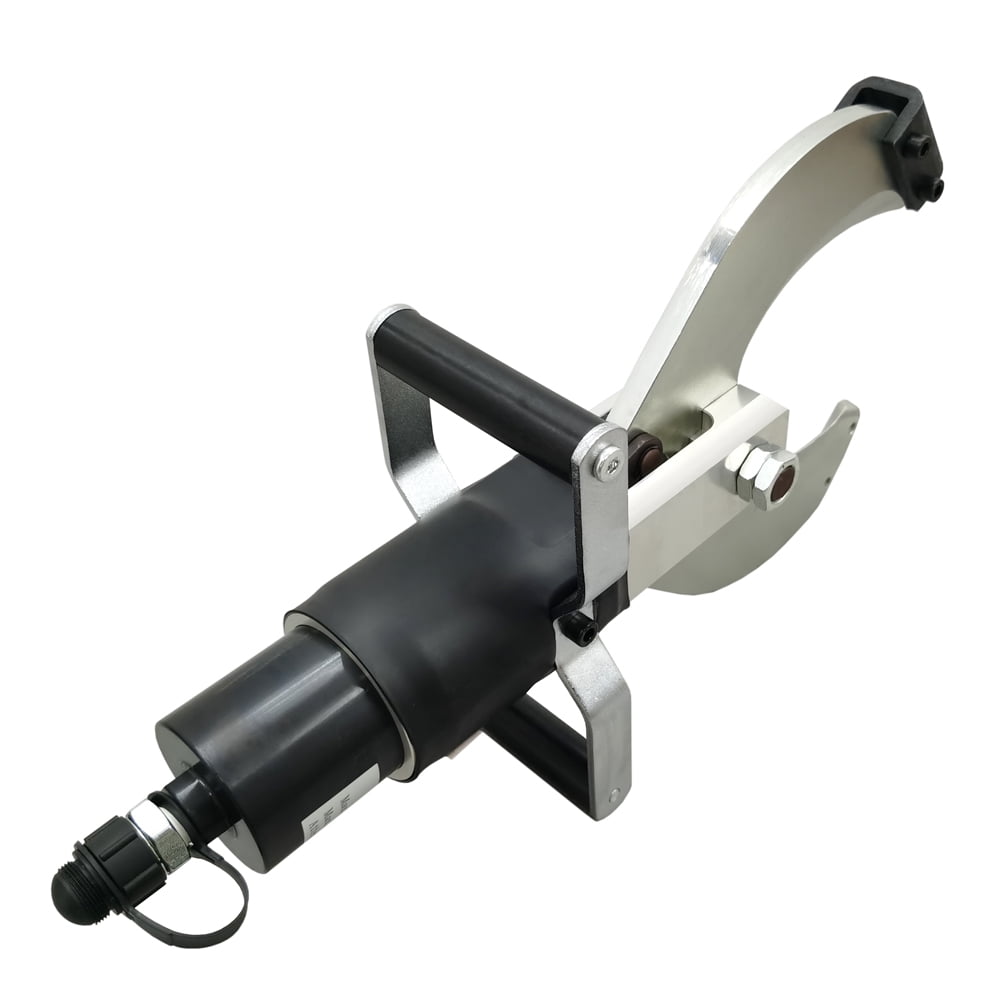

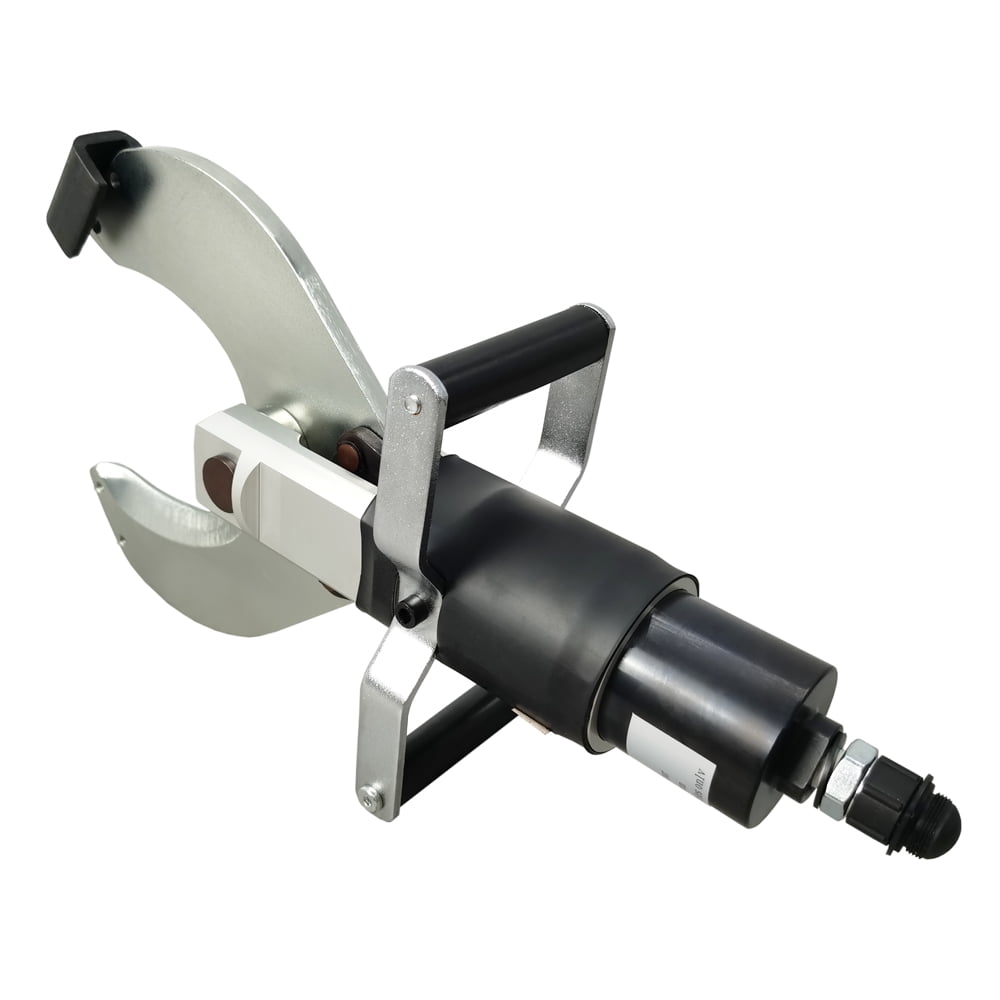

Electric Hydraulic Cable Scissor Open Type Cable Cutter C-cut Blade Copper Aluminum Wire Cutter CPC-105C

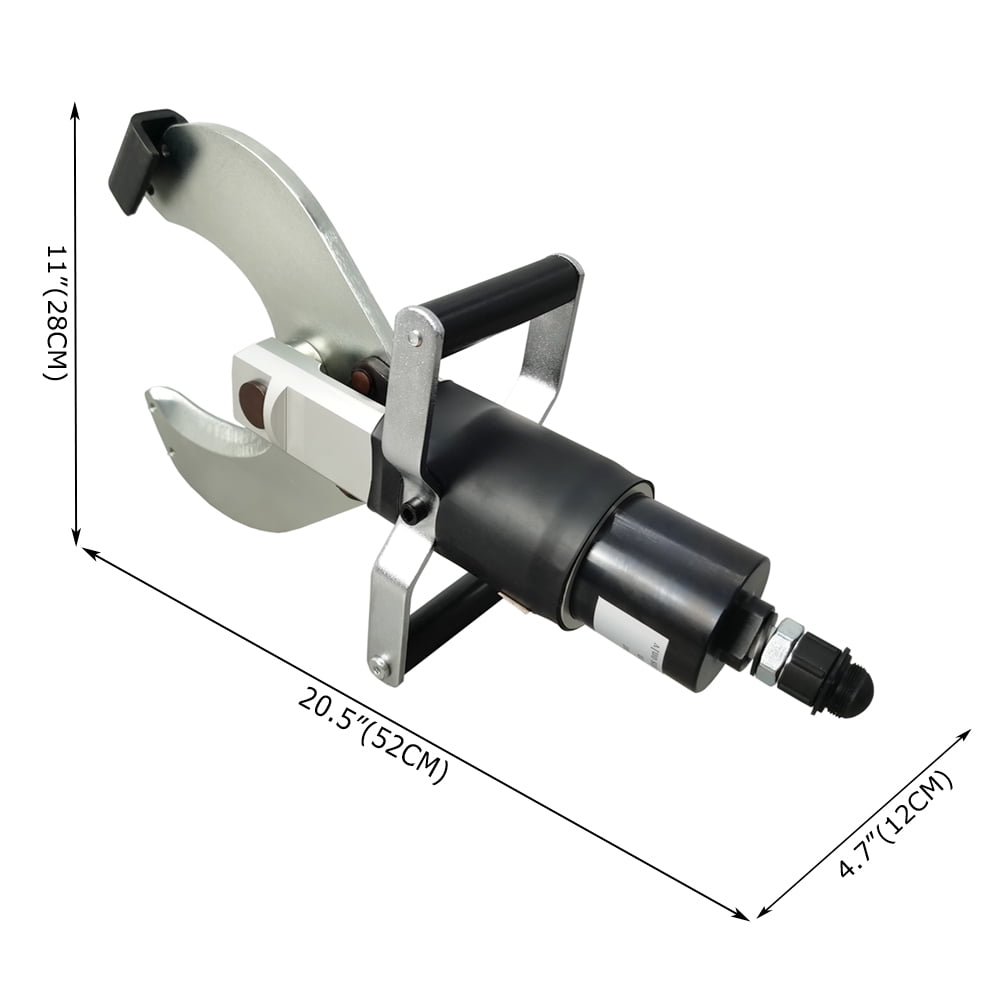

Product Overview <br>Open-mouth electro-hydraulic cable shears are used for cutting copper and aluminum cables and armored cables in construction sites, telecommunications industry, shipbuilding industry and other fields. The open-mouth C-cut blade, cutting operation is simpler and more convenient. Blade guide block design, effectively prevent blade dislocation during shearing process. This products does not contain a pump, is split, need to be equipped with a manual pump or electric pump to use. <br> <br>Product Parameters: <br>1. Model: CPC-105C <br>2. Shape: Open mouth <br>3. Cutting edge material: High carbon steel <br>4. Output: 120KN <br>5. Cutting range: Less than 4"(10CM) copper aluminum armored cable <br>6. Max.operating pressure: 700bar <br>7. Max.cutting-φ: 105mm <br>8. Oil capacity: 95ml <br>9. Net weight/Gross weight: 20lbs(9.05kg)/22lbs(10.10kg) <br>10. Product size: 20.5"*4.7"*11"(52CM*12CM*28CM) <br>11. Package size: 22.8"*6.3"12.6"(58CM*16CM*32CM) <br> <br>Item Included(056817) <br>Open mouth hydraulic cable scissors*1

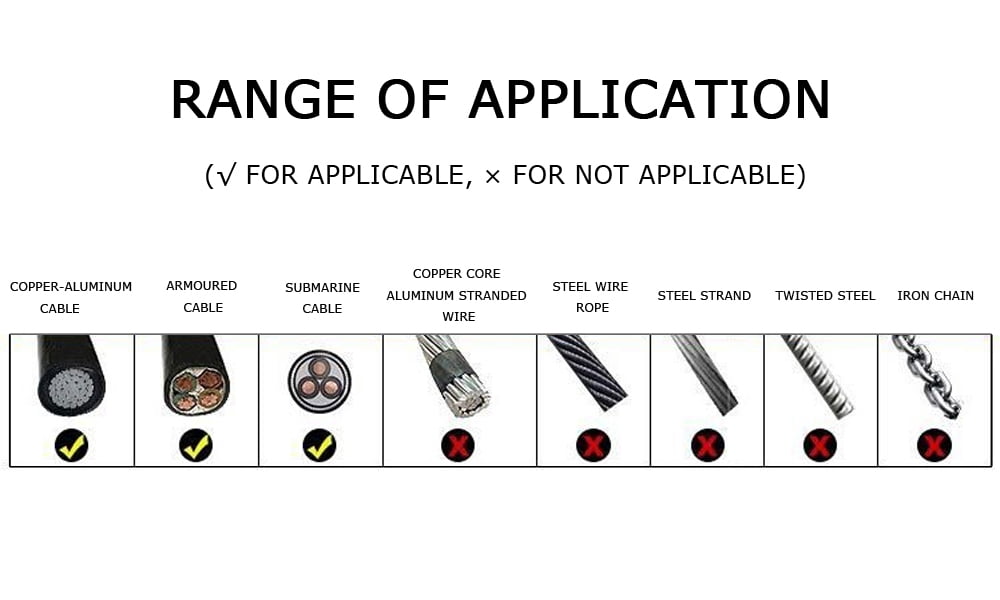

• The open-mouth C-cut blade is designed for efficient cutting of copper, aluminum, and armored cables, making it suitable for a wide range of industries where these types of cables are commonly encountered.

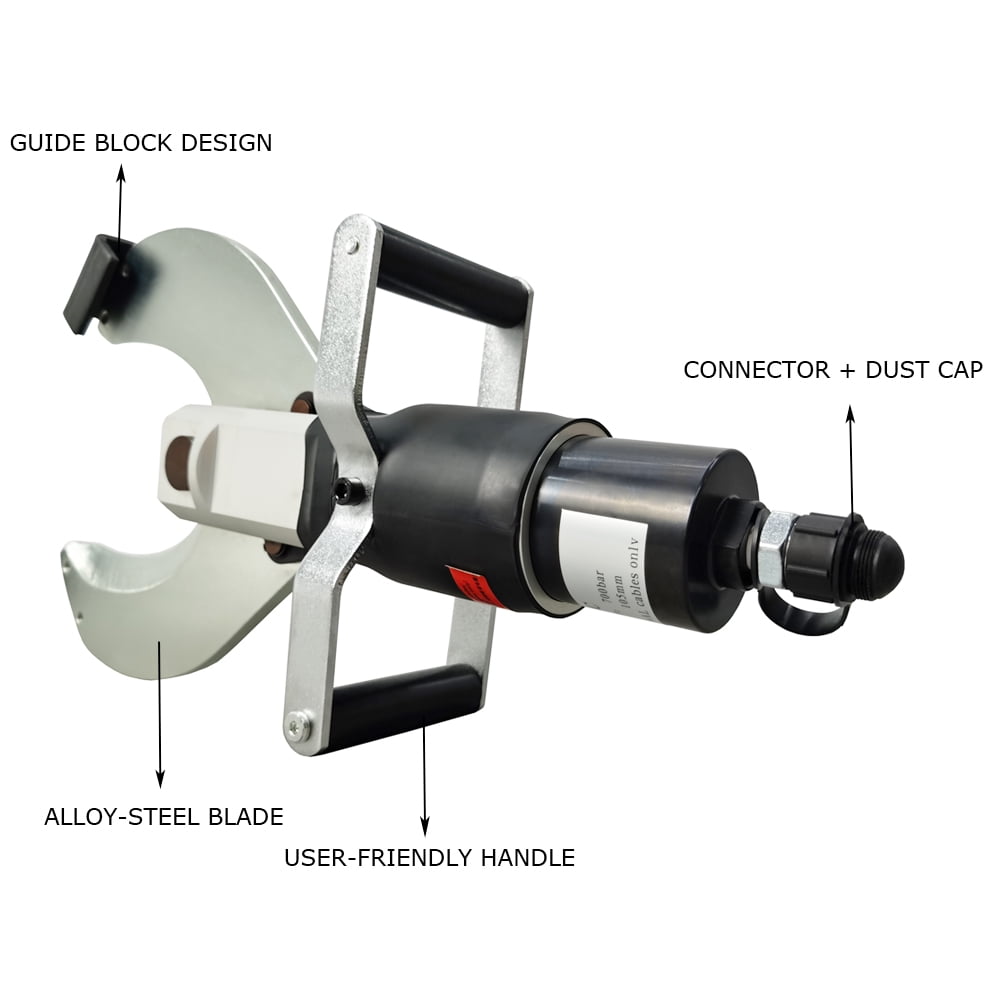

• Features a large opening and guide block for easy positioning and cutting of 0-105mm copper, aluminum, and armored cables, while preventing blade misalignment.
• Made from high-quality alloy steel with heat treatment for enhanced sharpness, durability, and long-lasting performance.

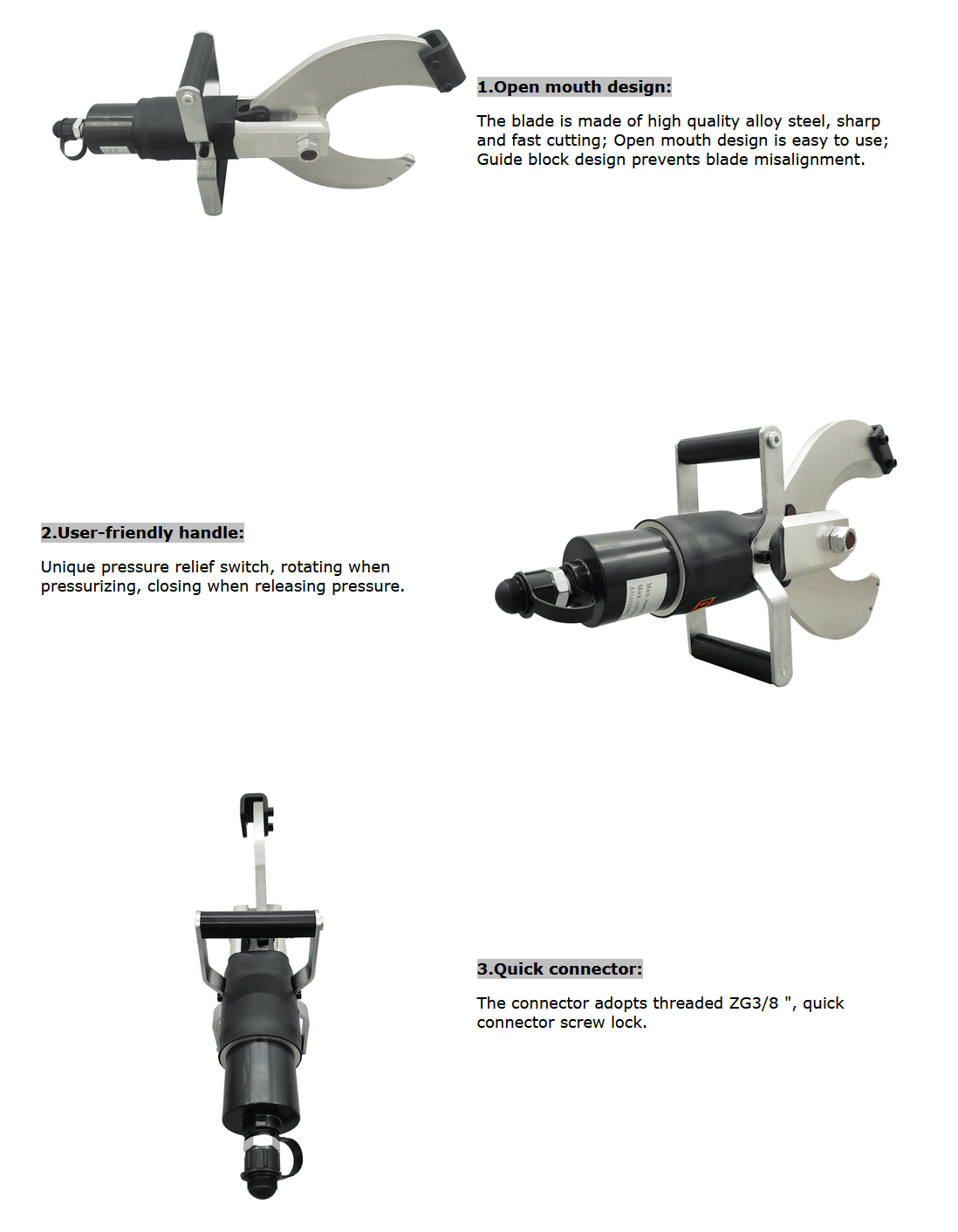

• Designed for comfort and efficiency, with a non-slip grip and a unique pressure relief switch for smooth operation.
• Allows flexible operation at any angle, whether in high or low positions, improving work efficiency in various situation.
• The cable cutter has a unique pressure relif switch, which can rotate when pressurizing and close when releasing pressure. The connector adopts threaded ZG3/8", which is a quick connector screw lock.
