Powerful 5000J Ruby Laser Nd:yag Rod Flash lamp Pumping Tube NOS IFP-5000 NOS

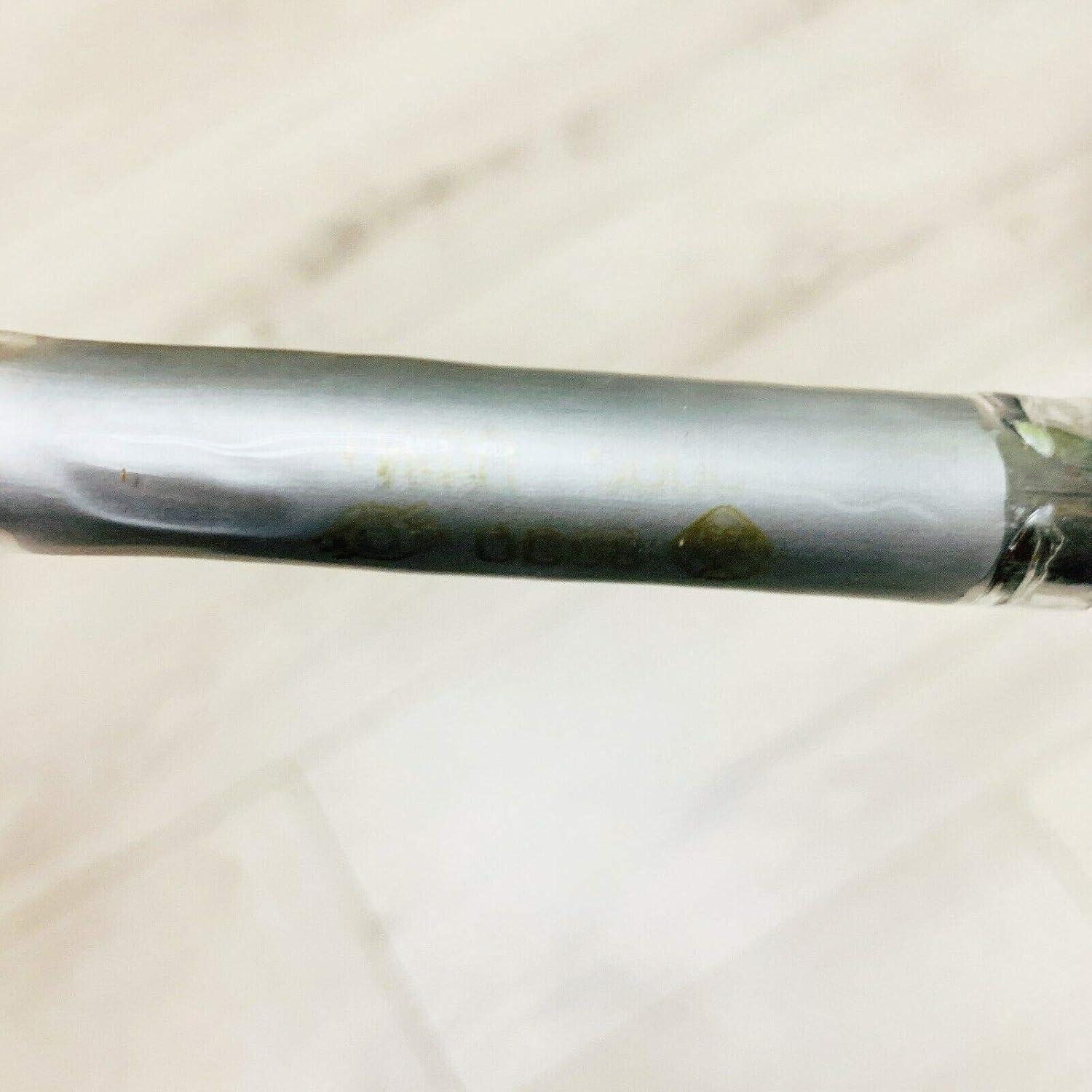

Impulse lamp IFP-5000 for photo and filming and direct impulse optical pumping of the active element GLS9P 12x260 laser technological unit (LTU) Quantum 16 and Quantum 10 laser pulse welding-working voltage 2250V, the energy of flashes 5000J. The number of flashes is 10000. This auction is for a new 5 kilojoule flash lamp, commonly used for Ruby or Nd laser pumping. The lamp is new old stock, but without original box. Tested with a low-power high voltage supply. Specifications Lighting part dimensions, mm 11×250 External dimensions, mm 22×470 Resistrance, Ohm 0,4 Nominal discharge energy, J 5000 Maximal discharge energy, J 8500 Nominal voltage, V 3000 Average power, W 500 Pulse frequency, Hz 0,1 Pulse duration, ms 0,8 Peak ignition voltage, kV 25 Cooling Water-cooled Minimal discharge voltage, kV 1.5 Self-breaking voltage, kV 3.5 Lamp type: Xenon Reflector: No Cap Type: Pin Energy of discharge: J 5000 Lamp length: 47 cm (18.5 in) Lamp diameter: 1.4 cm (0.55 in) Distance between electrodes: 25 cm (9.9in)
